Venue Content Specs · W/BBL

W/BBL Screen Layouts

Match-day screen layouts for the WBBL and BBL games SSA operates. Build to the program window, side bar and strap dimensions for your venue so your content sits cleanly alongside live scoring.

Sydney Cricket Ground

Dally Messenger Screen

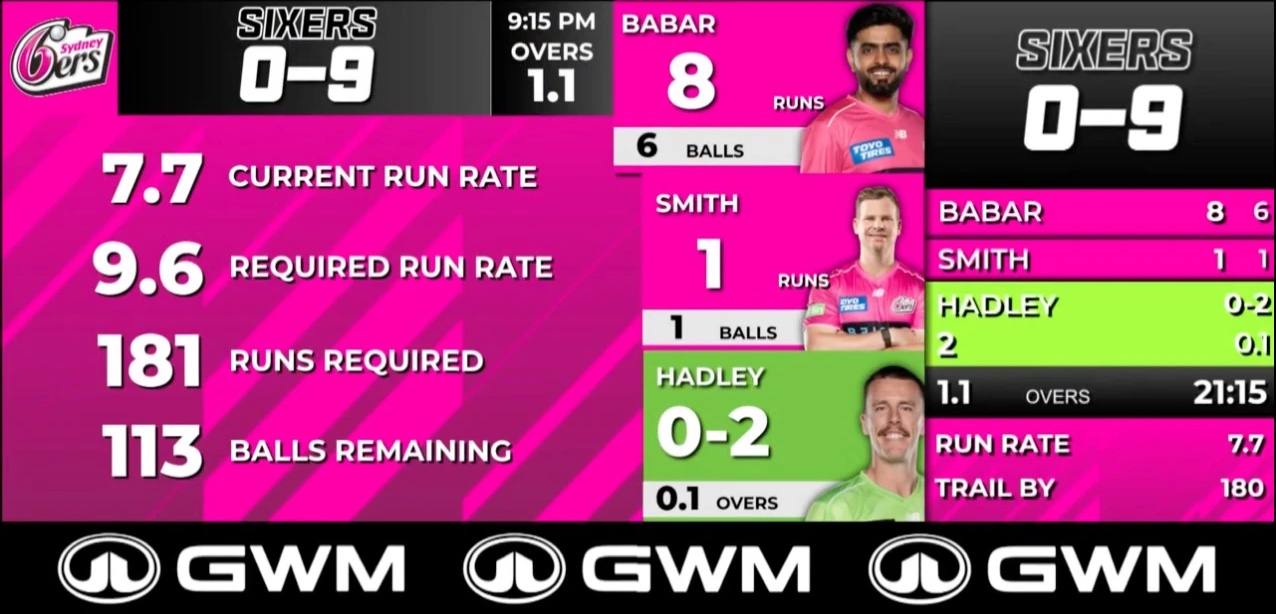

SCG Dally Messenger Screen W/BBL layout: Sixers run-rate and batter graphics in the program window, live scoring in the side bar, sponsor strap along the bottom.
Program Window1,592 × 896
Side Bar620 × 896
Strap2,212 × 168
Full canvas 2,212 × 1,064 px.
ZoneDimensions (px)Position
Program Window1,592 × 896Top left
Side Bar620 × 896Top right
Strap2,212 × 168Full width, bottom

Clive Churchill Screen

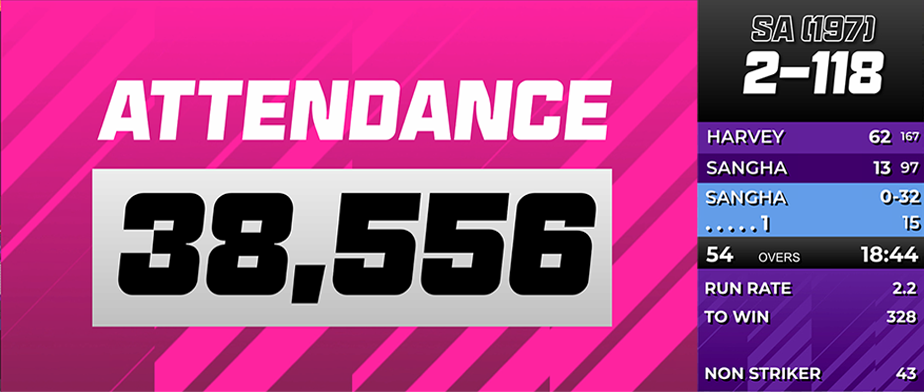

SCG Clive Churchill Screen W/BBL layout: attendance graphic in the program window, live scoring in the side bar.
Program Window696 × 392
Side Bar228 × 392
Full canvas 924 × 392 px.
ZoneDimensions (px)Position
Program Window696 × 392Left
Side Bar228 × 392Right

ENGIE Stadium

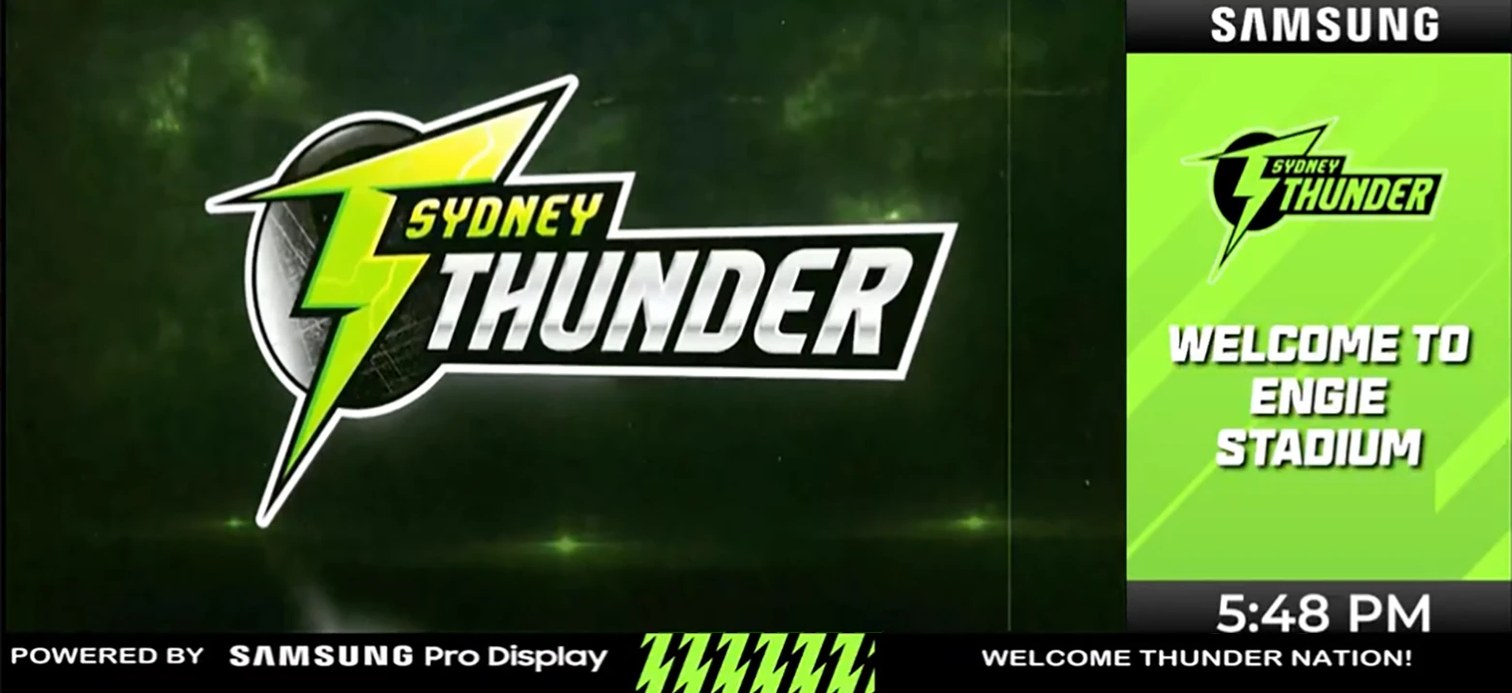

ENGIE Stadium W/BBL screen layout: Sydney Thunder graphic in the program window, side bar on the right, strap along the bottom.
Program Window1,126 × 633
Side Bar386 × 633
Strap1,512 × 60
Full canvas 1,512 × 693 px.
ZoneDimensions (px)Position
Program Window1,126 × 633Top left
Side Bar386 × 633Top right
Strap1,512 × 60Full width, bottom

Manuka Oval

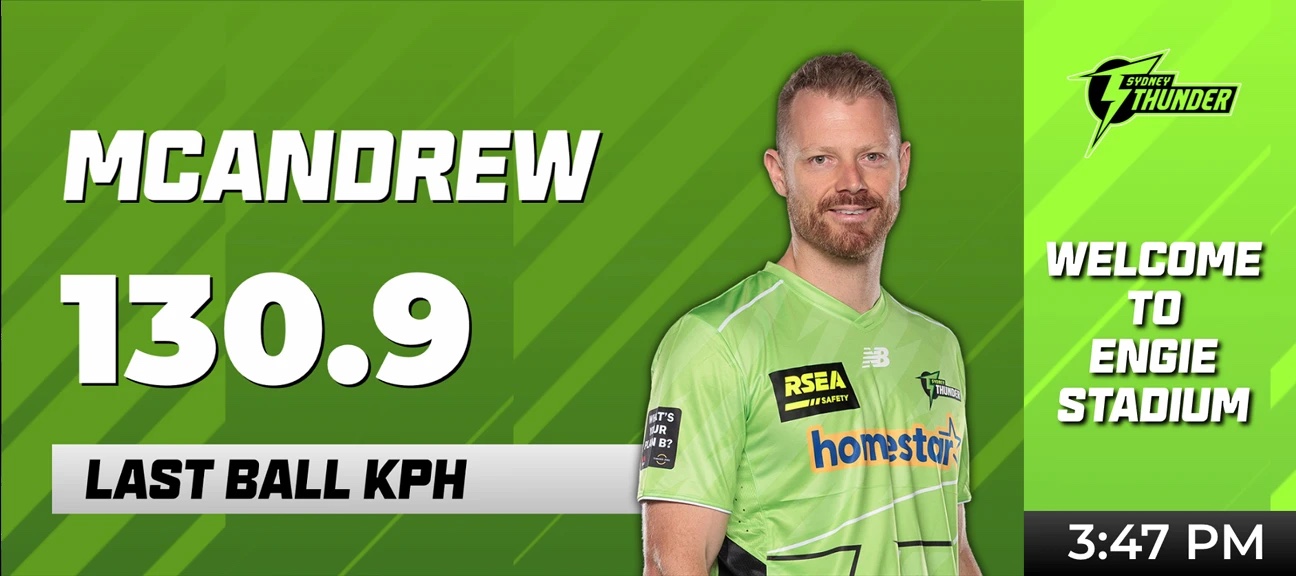

Manuka Oval W/BBL screen layout: player speed graphic in the program window, side bar on the right.
Program Window1,024 × 576
Side Bar272 × 576
Full canvas 1,296 × 576 px.
ZoneDimensions (px)Position
Program Window1,024 × 576 (16:9)Left
Side Bar272 × 576Right

Drummoyne Oval & North Sydney Oval

Both venues take a single full-frame 1,920 × 1,080 program feed. Timer graphics sit over the program at the positions below.

Scorecard

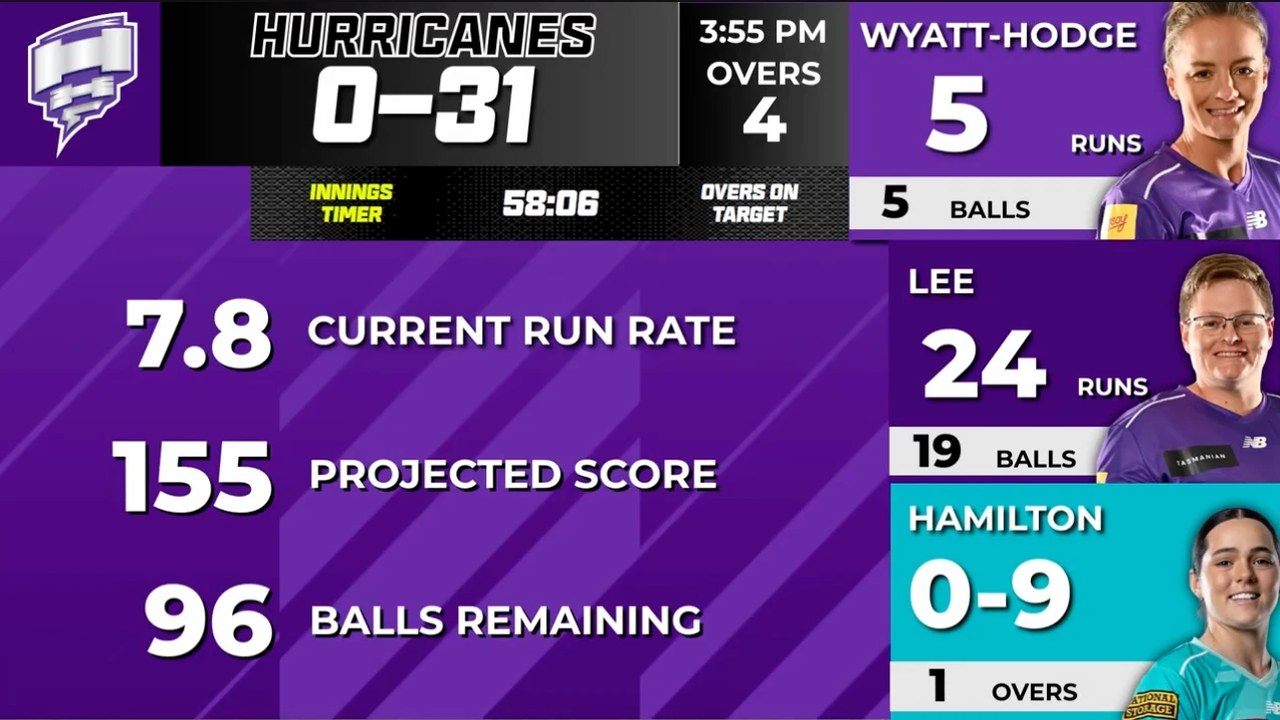

Drummoyne and North Sydney Oval W/BBL scorecard: Hurricanes score, run rate and batter cards, with the innings timer window below the score.
Innings Timer898 × 112
Full program 1,920 × 1,080 px. The innings timer window holds the innings timer, time and overs-on-target text.
ZoneDimensions (px)Position (x, y from top left)
Program1,920 × 1,080Full frame
Innings Timer Window898 × 112376, 250

Live Play

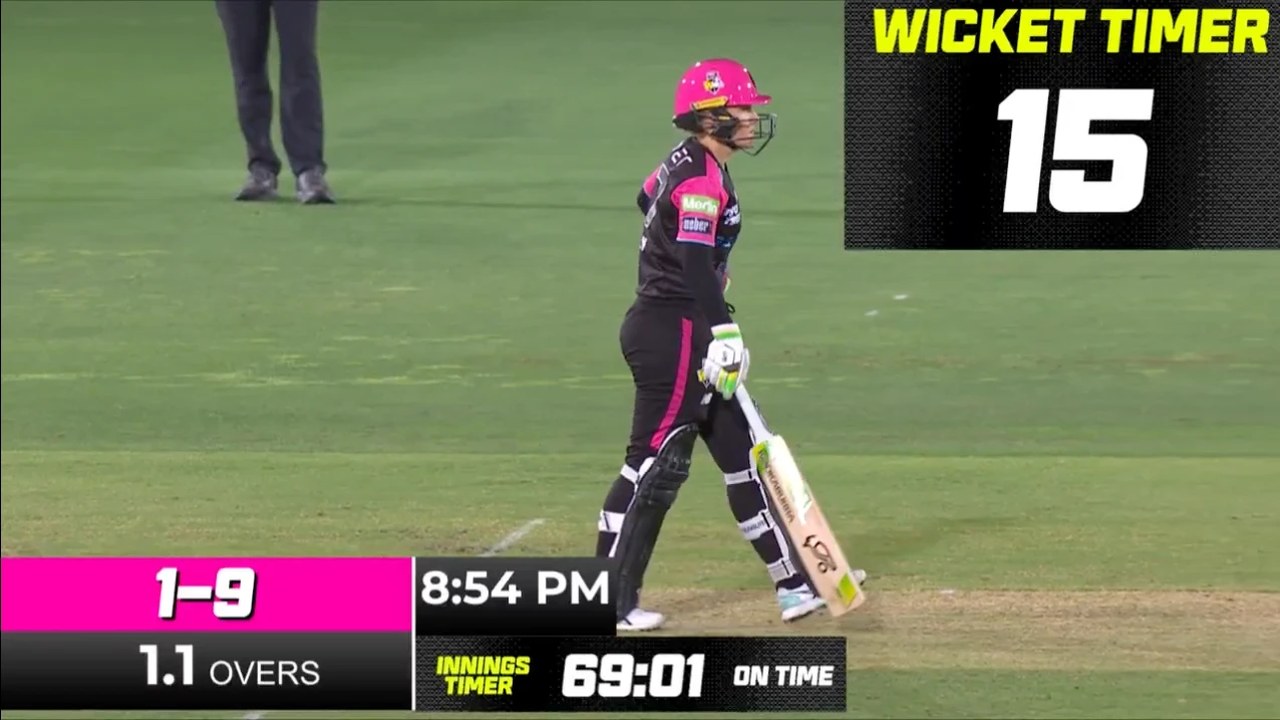

Drummoyne and North Sydney Oval W/BBL live play: batter on the program feed, wicket timer top right and innings timer along the bottom.
Wicket Timer654 × 374
Innings Timer648 × 112
Full program 1,920 × 1,080 px.
ZoneDimensions (px)Position (x, y from top left)
Program1,920 × 1,080Full frame
Wicket Timer654 × 3741,266, 0 (top right)
Innings Timer648 × 112622, 956

All content is subject to venue approval. Full venue screen specs are on the Content Specs page.

Questions about W/BBL content delivery? Email production@ssa.live.
